Pantalla OLED redonda de reloj inteligente de 1.4 pulgadas con resolución 400 * 400 RM67162 IC, 20PIN, interfaz MIPI de 1 carril

SCE139001-V01 es una pantalla OLED redonda con tipo COG, resolución 400 * 400, IC RM67162, interfaz MIPI de 1 carril, 20 PIN

SKU: SCE139001-V01
Type: OLED
Mode: -
Product No.: SCE139001-V01
Size: 1.4''
Resolution: 400*400
Outline Dimension: 38.6*40.5*0.67
Active Area: 35.4*35.4
Interface: MIPI 1-lane
IC: RM67162
Brightness: -
Touch Screen: No
View Direction: -
Pin No.: 20
Shape: Round

Descripción

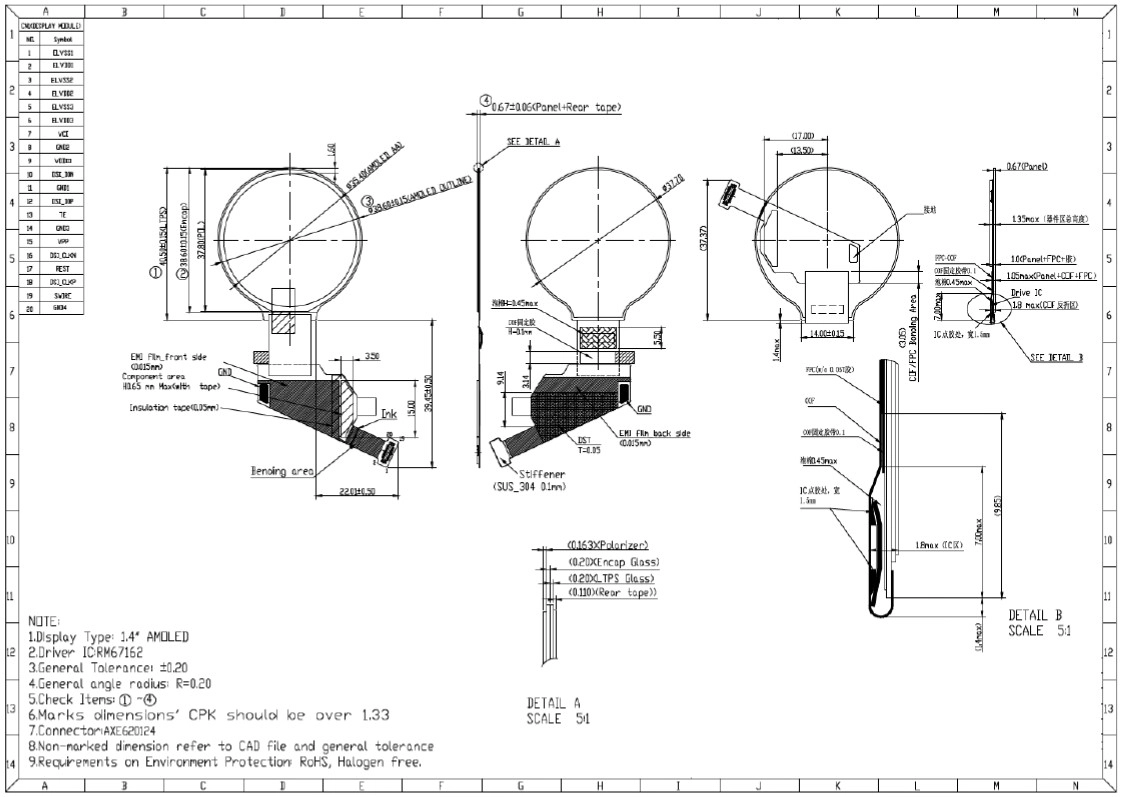

                         Dibujo







                         Especificaciones generales



Item Specification unit
Dimension outline 38.6 x 40.5 x 0.67 mm
LTPS Glass outline 38.6 x 40.5 mm
Encapsulation Glass outline φ38.6 mm
Number of dots 400(W) x RGB x 400(H) dots
Active area φ35.4 mm
Diagonal size 1.39 inch
Pixel pitch 29.5 x 88.5 μm
Glass thickness
(LTPS/encapsulation glass)
0.2 / 0.2 mm
Weight 2 g







                         Definición de interfaz



# Pin_name I/O Description
1 ELVSS1 Power AMOLED power Negative
2 ELVDD1 Power AMOLED power Positive
3 ELVSS2 Power AMOLED power Negative
4 ELVDD2 Power AMOLED power Positive
5 ELVSS3 Power AMOLED power Negative
6 ELVDD3 Power AMOLED power Positive
7 VCI Power Driver IC analog supply
8 GND2 Power The power ground
9 VDDIO Power Driver IC digital I/O supply
10 DSI_D0N I/O MIPI DSI data0-
11 GND1 Power The power ground
12 DSI_D0P I/O MIPI DSI data0+
13 TE O Tear effect output
14 GND3 Power The power ground
15 VPP Power Power supply for OTP.
Leave the pin to open when not in use.
16 DSI_CLKN I/O MIPI DSI clock-
17 REST I This signal will reset the device and must be applied to properly initialize the chip.
Active low.
18 DSI_CLKP I/O MIPI DSI clock+
19 SWIRE O Swire protocol setting pin of Power IC
20 GND4 Power The power ground
