1.28 inch 240×240 Round IPS TFT LCD Display 4-Line SPI Interface GC9A01 Driver IC 900 nits High Brightness

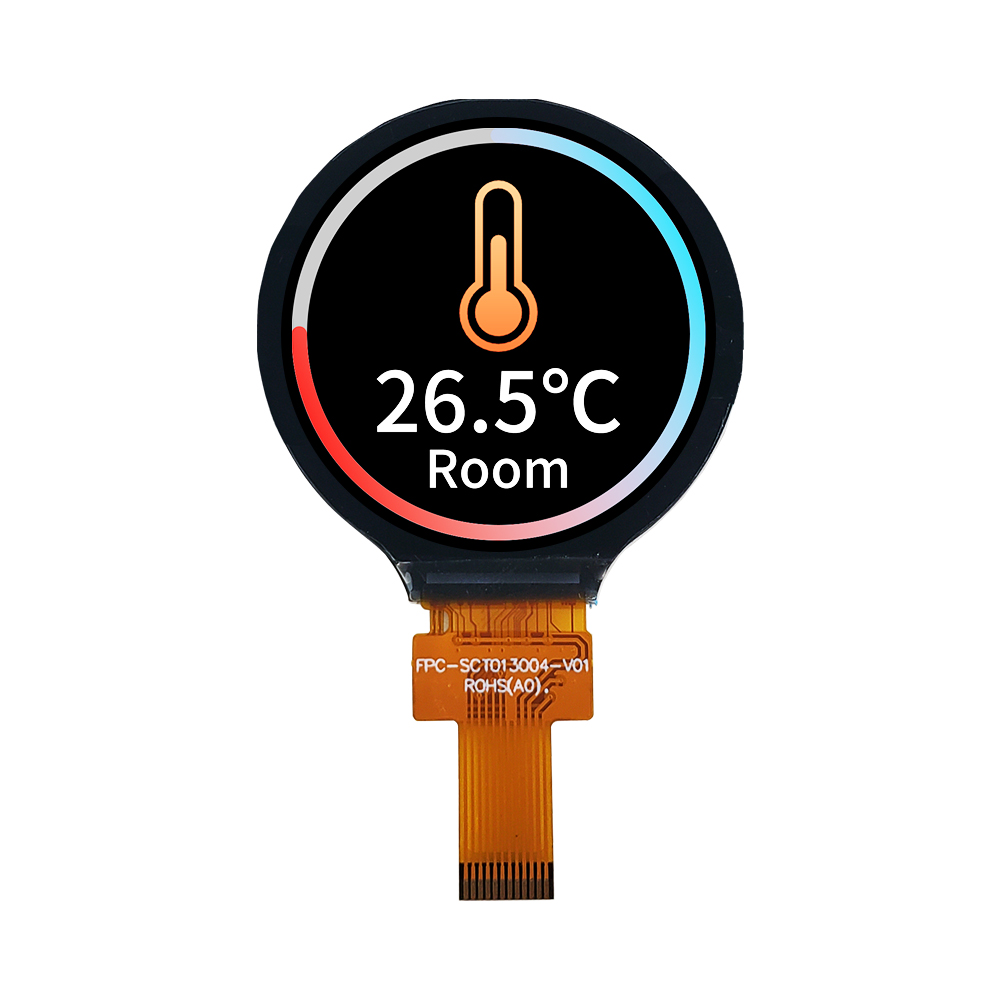

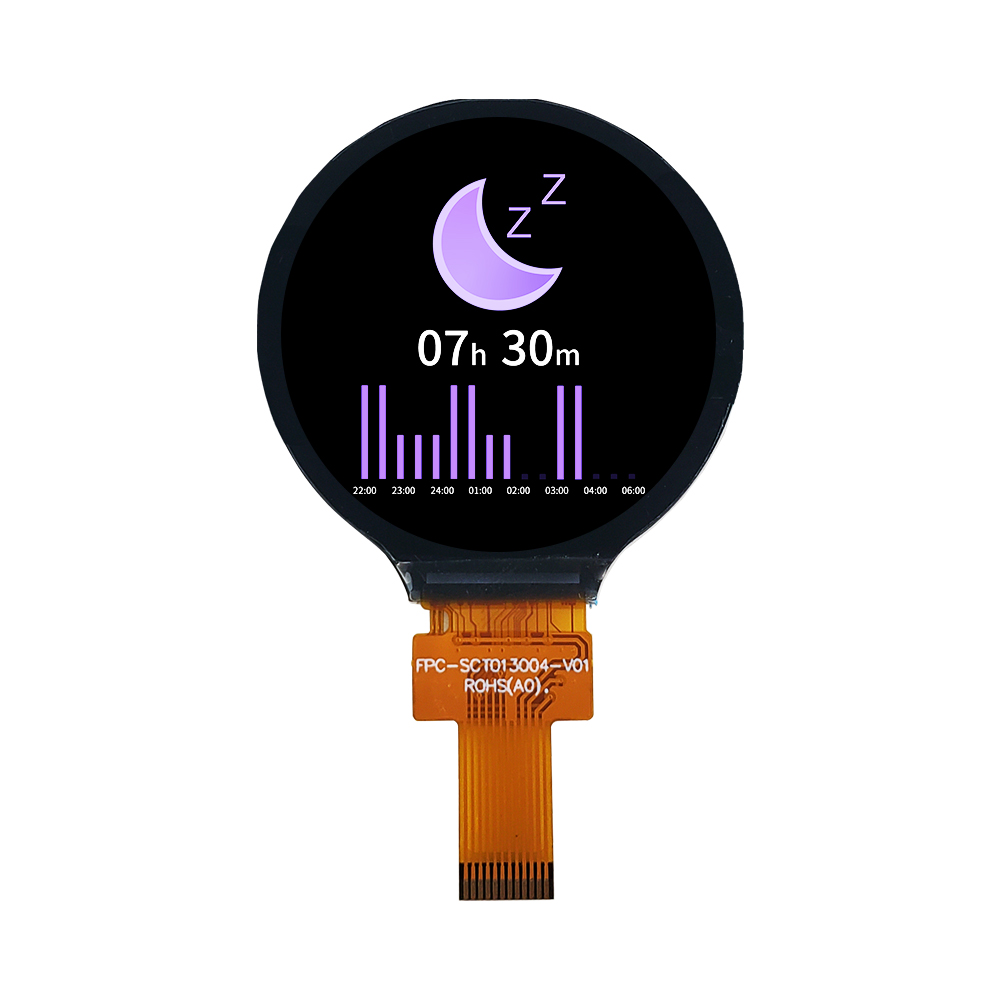

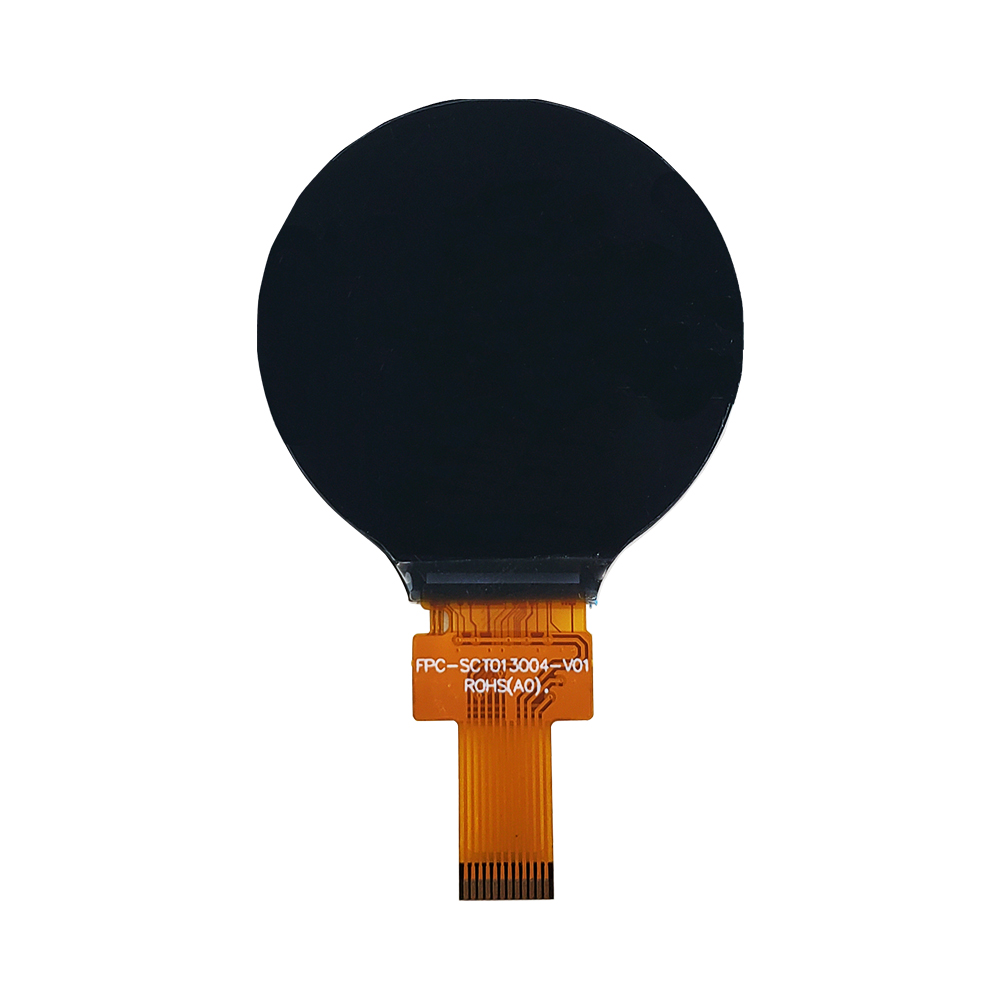

SCT013004-V01 is a 1.28-inch round IPS TFT LCD display featuring 240×240 resolution, GC9A01 driver IC, 4-line SPI interface, 12PIN connection, and 900 nits high brightness. Offering full viewing angles, vivid colors, and excellent outdoor readability, it is ideal for smart home devices, wearable electronics, industrial instruments, and IoT applications.

TypeTFT
ModeIPS
Product NoSCT013004-V01
Size1.28''
Resolution240*240
Outline Dimension35.60*37.74*1.59
Active Area23.4*23.4
Interface4 line SPI
ICGC9A01
Brightness900cd/m2
Touch ScreenNo
View DirectionIPS
Pin No12
ShapeRound
