1.12” IPS TFT Normal Black Transmissive LCD Display With 50*160 Resolution GC9D01

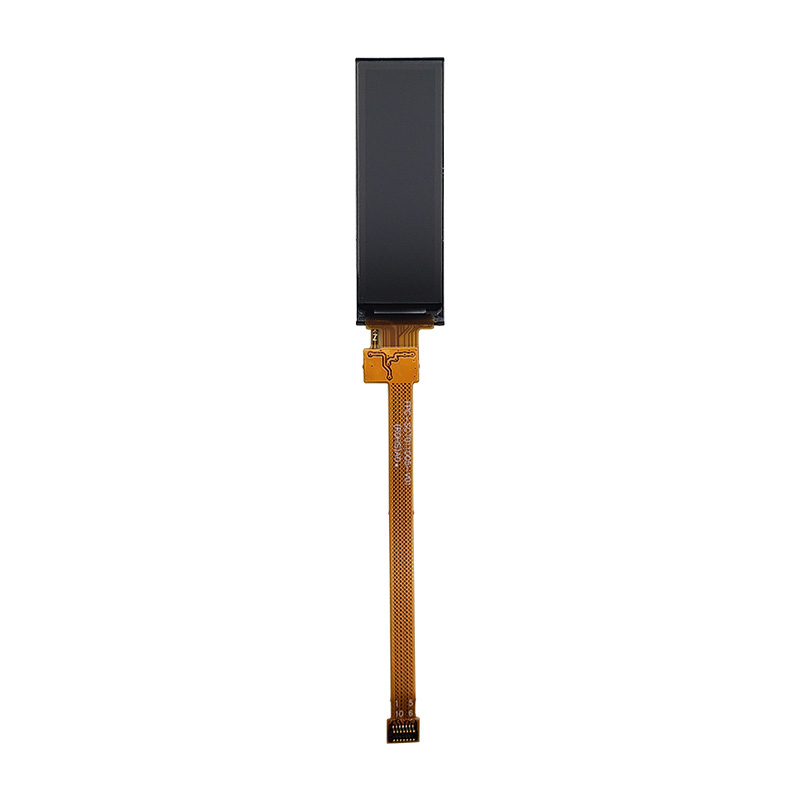

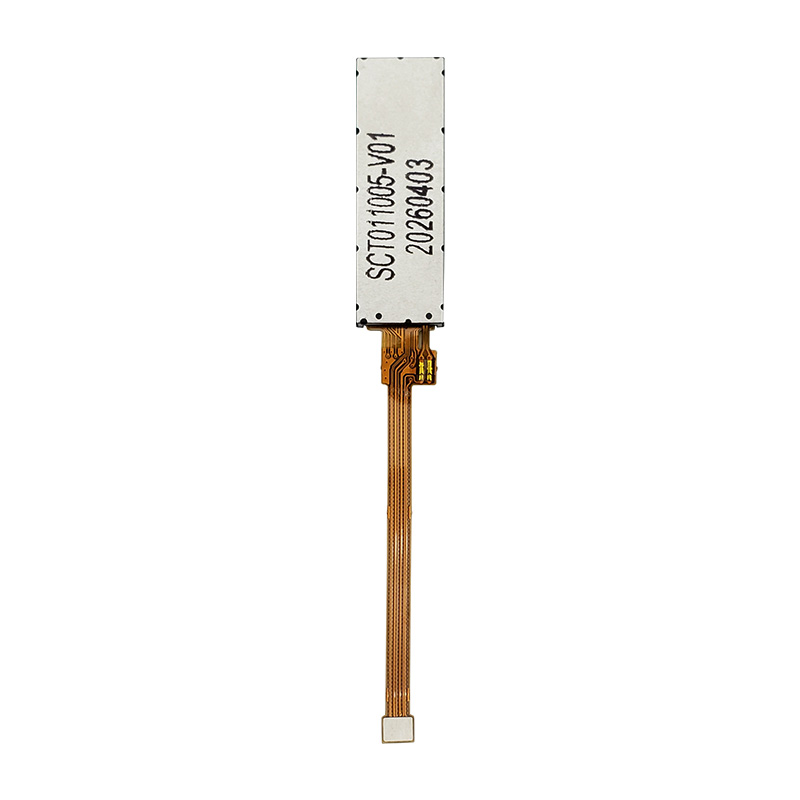

SCT011005-V01 is a 1.12″ mini TFT LCD display, with 50xRGBx160 resolution. This module is built in with GC9D01 IC. It is a portrait mode LCD module.

TypeTFT
ModeIPS
Product NoSCT011005-V01
Size1.12''
Resolution50*160
Outline Dimension10.80*32.18*2.13
Active Area8.49*27.17
Interface4-line SPI
ICGC9D01
Brightness350cd/m2
Touch ScreenNo
View DirectionIPS
Pin No10
ShapeRectangle
