Display LCD con interfaccia SPI da 1,8 '' con CI 128 * 160 ST7735S

SCT018013-V01 è un display LCD TFT da 1,77 pollici con risoluzione 128×160, integrato con IC ST7735S e supporta l'interfaccia SPI, 10 PIN, direzione di visualizzazione a ore 12.

SKU: SCT018013-V01
Type: TFT
Mode: TN
Product No.: SCT018013-V01
Size: 1.8''
Resolution: 128*160
Outline Dimension: 34.00*45.83*2.60
Active Area: 28.032*35.040
Interface: SPI
IC: ST7735S
Brightness: 300cd/m2
Touch Screen: No
View Direction: 12 o'clock
Pin No.: 10
Shape: Rectangle

Descrizione

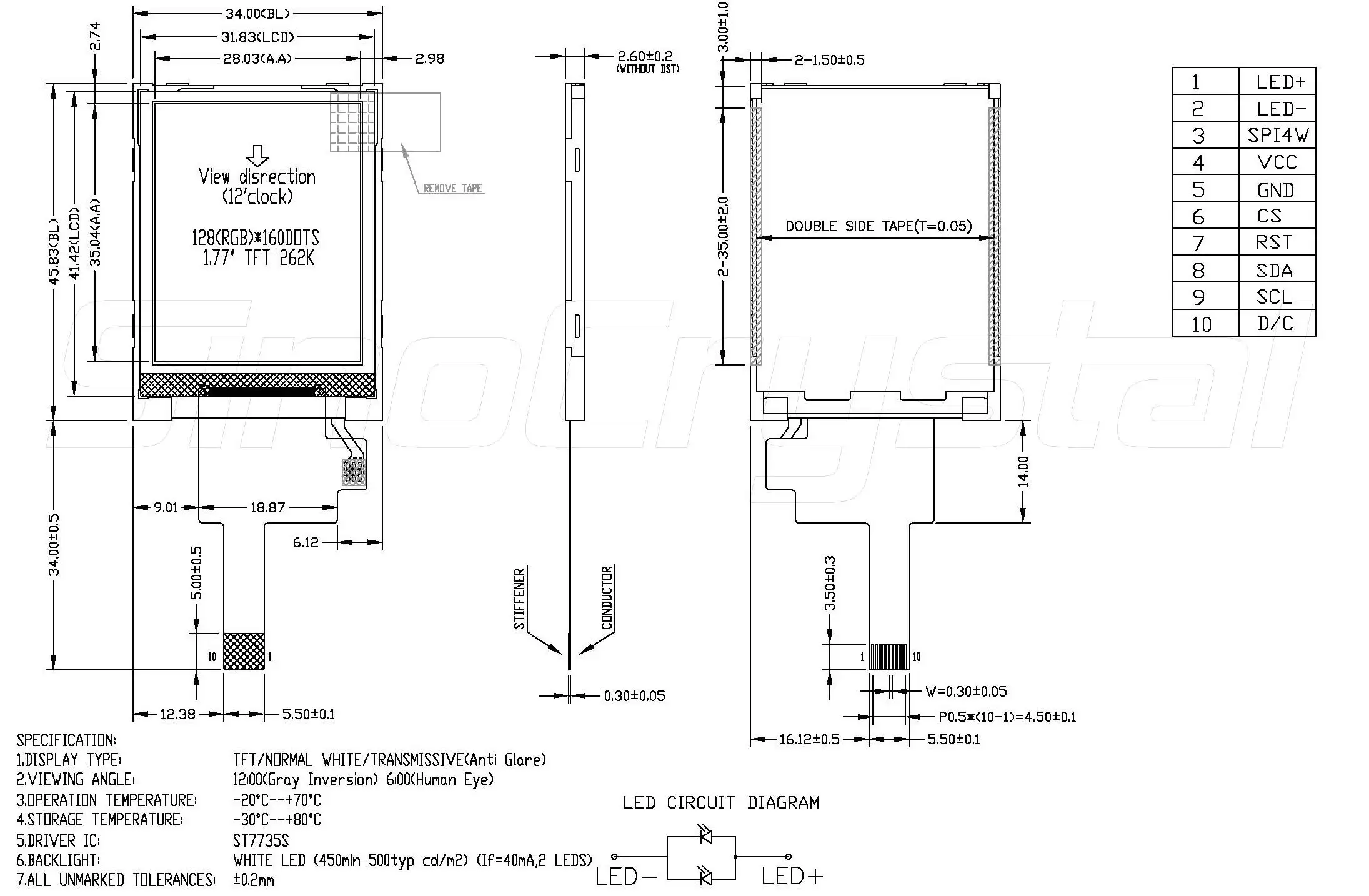

                        Disegno











                        Specifiche generali





Item Nominal Dimension Unit
Dot Matrix 128 x RGB x 160 Dots
Module Size ( W×H×T ) 34.0 x 45.83 x 2.60 mm.
Active Area ( W×H ) 28.032 x 35.040 mm.
Pixel arrangement RGB Stripe mm.
Dot Pitch ( W×H ) 0.219 x 0.219 mm.
Color depth 262K(MAX) colors
Interface SPI
Driving IC ST7735S
Operating temperature -20 ~70 ºC
Storage temperature -30~80 ºC
LCD Type a-Si TFT
LCD Mode TN / Normal White
Backlight Type LED x 2 PCS







                        Definizione dell’interfaccia





Pin No Pin Symbol Type Description
1 LED+ P LED light, anode
2 LED- P LED light, cathode.
–  SPI4W=’0′, 3-line SPI Enable.
3 SPI4W I –  SPI4W=’1′, 4-line SPI Enable.
4 VCC P Power supply
5 GND P Ground
6 CS I Chip Select
7 RESET I Chip reset signal
8 SDA I/O Serial data input/output signal
9 SCL I Serial clock input signal
10 D/C I In 4-line SPI:
-D/CX=’1′: Display Data or Parameter.
-D/CX=’0′: Command Data. In 3-line SPI: no used
If not used, please fix this pin at GND level
